Branham Rodless Air Cylinder
Cross-Reference Guide
Quick Reference for Replacements & Part Compatibility
How to Use This Guide:
-
Identify your current cylinder type (magnetically coupled or cable)
-
Locate your competitor's model number in the cross-reference tables
-
Match critical specifications (bore size, stroke length, mounting)
-
Contact Branham for confirmation and quick delivery

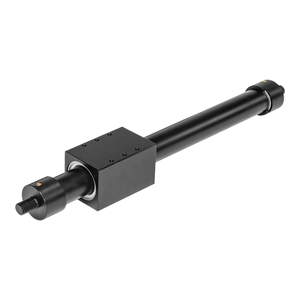

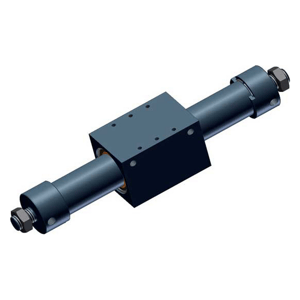

MAGTEC®
Magnetically Coupled Cylinders
- Design: Completely enclosed, no external band or seal exposure
- Construction: Standard anodized aluminum or optional stainless steel
- Coupling: Rare-earth magnetic coupling
- Ideal for: Clean, washdown, or contamination-sensitive environments
Critical Specifications to Match:
- Bore diameter
- Stroke length
- Magnetic coupling force (lbs/kg)
- Decoupling rating
- Environmental rating (IP rating for washdown)
- Mounting style
- Material specifications (304 vs. 316 stainless steel)
- Temperature rating
Cable Cylinders
- Standard Double-Acting: 9 bore sizes (¾″ – 5″)
- PNEU-SA® Enclosed: Fully enclosed, mil-spec rated cables
- Single-Acting: For lifting or tension applications (1½″ – 5″)
- Guided Cable Cylinders: Integrated guidance for precision alignment
- Linear Tension Cable (LTC): For counterbalancing and heavy loads

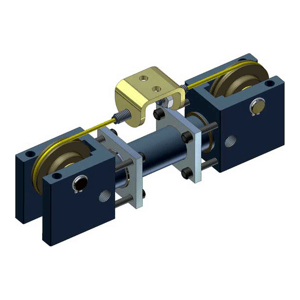

Double-Acting Cable Cylinder
Critical Specifications to Match:
- Critical Specifications to Match:
- Bore diameter (inches/mm)
- Stroke length (extended lengths available)
- Cable tensile strength rating
- External guidance requirements
- Mounting configuration
- Cushioning options (internal vs. external shock absorbers)
- Stainless steel grade (304 vs. 316)
- Seal material compatibility with chemicals/cleaners

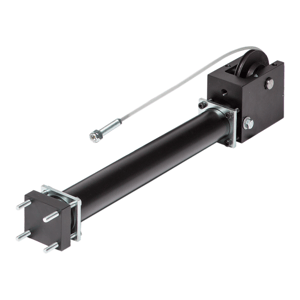

Single-Acting Cable Cylinder

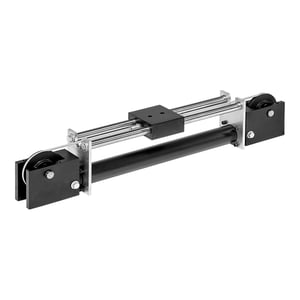

Guided Cable Cylinder
| Tolomatic Double-Acting Cable Cylinder Cross-Reference |
|||||
| Tolomatic Model | Bore Size | Max Stroke |
Branham Equivalent | Branham Bore | Crossover (Direct Interchange or Close Match) |
|
CC07 |
¾" |
Up to 138" |
Standard Cable 0.75” | 0.75" |
Direct interchange |
|
CC10 |
1" |
Up to 282" |
Standard Cable 1" | 1.00" | Direct interchange |
|
CC15 |
1 ½" |
Up to 280" |
Standard Cable 1.5" | 1.50" | Direct interchange |
|
CC20 |
2" |
Up to 280" |
Standard Cable 2" | 2.00" | Direct interchange |
|
CC25 |
2 ½" |
Up to 280" |
Standard Cable 2.5" | 2.50" | Direct interchange |
|
CC30 |
3" |
Up to 280" |
Standard Cable 3" | 3.00" | Direct interchange |
|
CC40 |
4" |
Up to 279" |
Standard Cable 4" | 4.00" | Direct interchange |
|
CC50 |
5" |
Up to 282" |
Standard Cable 5" | 5.00" | Direct interchange |
| Tolomatic Single-Acting Cable Cylinder Cross-Reference |
|||||
| Tolomatic Model | Bore Size | Max Stroke |
Branham Equivalent | Branham Bore | Crossover (Direct Interchange or Close Match) |
|
SA07 |
¾" |
Up to 96" |
Single-Acting Cable 1.5” | 1.50" |
Close match - see dimensions |
|
SA10 |
1" |
Up to 192" |
Single-Acting Cable 1.5” | 1.00" | Close match - see dimensions |
|
SA15 |
1 ½" |
Up to 192" |
Single-Acting Cable 1.5” | 1.50" | Direct interchange |
|
SA20 |
2" |
Up to 192" |
Standard Cable 2" | 2.00" | Direct interchange |
|
SA25 |
2 ½" |
Up to 192" |
Single-Acting Cable 2.5" | 2.50" | Direct interchange |
|
SA30 |
3" |
Up to 192" |
Single-Acting Cable 3" | 3.00" | Direct interchange |
|
SA40 |
4" |
Up to 192" |
Single-Acting Cable 4" | 4.00" | Direct interchange |
|
SA52 |
2" |
Up to 192" |
Single-Acting Cable 2" | 2.00" | Direct interchange |
|
SA50 |
5" |
Up to 192" |
Single-Acting Cable 5" | 5.00" | Direct interchange |
| Tolomatic Track Cable Cylinder Cross-Reference |
|||||
| Tolomatic Model | Bore Size | Max Stroke |
Branham Equivalent | Branham Bore | Crossover (Direct Interchange or Close Match) |
|
TC05 |
½" |
Various |
Guided Cable Cylinder |
0.75" | Close match - see dimensions |
|
TC07 |
¾" |
Various |
Guided Cable Cylinder |
0.75" | Direct interchange |
|
TC10 |
1" |
Various |
Guided Cable Cylinder | 1.00" | Direct interchange |
|
TC15 |
1 ½" |
Various |
Guided Cable Cylinder | 1.50" | Direct interchange |
Why Choose Branham as Your Rodless Cylinder Supplier?
- Quality Construction: Upgraded Quad-X ring seals, mil-spec rated cables, hard-coated aluminum tubing
- Drop-In Compatibility: Designed as direct replacements for major brands
- Customization Options: Easy modifications for unique applications
- 2-Year Limited Warranty: Peace of mind on all products
- Technical Support: On-staff engineers available to help with selectio
- 3D CAD Files Available: Simplify integration and design work
